Thin Film High Pass SMD filters from DC to 5.15 GHz

SKU: HP0805H5150ASTR

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

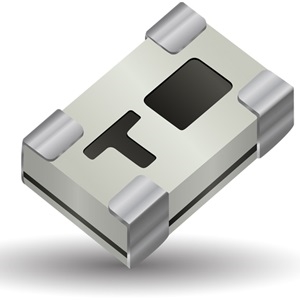

HP0805H5150ASTR Image

The HP0805H5150ASTR from Kyocera AVX is a Space Qualified RF Filter with Frequency DC to 5.15 GHz, Center Frequency 2575 MHz, Bandwidth 5150 MHz, Power 3 W, Insertion Loss -1.5 dB. Tags: Surface Mount. More details for HP0805H5150ASTR can be seen below.

Product Specifications

Product Details

  • Part Number
    HP0805H5150ASTR
  • Manufacturer
    Kyocera AVX
  • Description
    Thin Film High Pass SMD filters from DC to 5.15 GHz

General Parameters

  • Filter Type
    High Pass Filter
  • Configuration
    Thin Film
  • Frequency
    DC to 5.15 GHz
  • Center Frequency
    2575 MHz
  • Bandwidth
    5150 MHz
  • Power
    3 W
  • Insertion Loss
    -1.5 dB
  • Return Loss
    -15 dB
  • Rejection
    -25 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    SMD Filter
  • Application
    5G \ UWB, Base stations, Mobile communications, Satellite TV receivers, Vehicle location systems, Wireless LAN’s
  • Dimension
    2.03 x 1.55 x 0.8 mm (L x W x T)
