Thin Film Low Pass SMD filters from 2.4 to 2.484 GHz

SKU: LP0805A2442AS

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

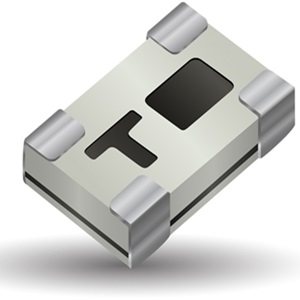

LP0805A2442AS Image

The LP0805A2442AS from Kyocera AVX is a Space Qualified RF Filter with Frequency 2.4 to 2.484 GHz, Center Frequency 2442 MHz, Bandwidth 84 MHz, Power 3 W, Insertion Loss 0.3 to 0.4 dB. Tags: Surface Mount. More details for LP0805A2442AS can be seen below.

Product Specifications

Product Details

  • Part Number
    LP0805A2442AS
  • Manufacturer
    Kyocera AVX
  • Description
    Thin Film Low Pass SMD filters from 2.4 to 2.484 GHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Thin Film
  • Frequency
    2.4 to 2.484 GHz
  • Center Frequency
    2442 MHz
  • Bandwidth
    84 MHz
  • Power
    3 W
  • Insertion Loss
    0.3 to 0.4 dB
  • Rejection
    20 to 30 dB
  • VSWR
    1.70:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    SMD Filter
  • Application
    Wireless LAN, Mobile Communications, Satellite TV Receivers, GPS, Vehicle Location Systems, Wireless LAN’s
  • Dimension
    2.03 x 1.55 x 1.02 mm (L x W x T)
