Thin Film Low Pass SMD filters from DC to 0.7 GHz

SKU: LP0805H0700ASTR

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

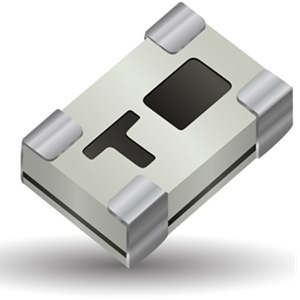

LP0805H0700ASTR Image

The LP0805H0700ASTR from Kyocera AVX is a Space Qualified RF Filter with Frequency DC to 0.7 GHz, Center Frequency 350 MHz, Bandwidth 700 MHz, Power 8 W, Insertion Loss -0.4 dB. Tags: Surface Mount. More details for LP0805H0700ASTR can be seen below.

Product Specifications

Product Details

  • Part Number
    LP0805H0700ASTR
  • Manufacturer
    Kyocera AVX
  • Description
    Thin Film Low Pass SMD filters from DC to 0.7 GHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Thin Film
  • Frequency
    DC to 0.7 GHz
  • Center Frequency
    350 MHz
  • Bandwidth
    700 MHz
  • Power
    8 W
  • Insertion Loss
    -0.4 dB
  • Return Loss
    -20 dB
  • Rejection
    -35 to -30 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    SMD Filter
  • Application
    Mobile Communications, Satellite TV Receivers, GPS, Vehicle Location Systems, Wireless LAN’s
  • Dimension
    2.03 x 1.55 x 0.8 mm (L x W x T)
