Multilayer Organic Low Pass Ceramic filters from DC to 3100 GHz

SKU: LP0AA3100A7**

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

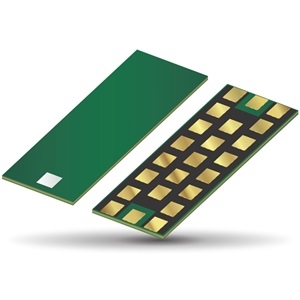

LP0AA3100A7** Image

The LP0AA3100A7** from Kyocera AVX is a Space Qualified RF Filter with Frequency DC to 3.1 GHz, Center Frequency 1550 MHz, Cut Off Frequency 3.65 GHz, Bandwidth 3100 MHz, Power 4 W. Tags: Surface Mount. More details for LP0AA3100A7** can be seen below.

Product Specifications

Product Details

  • Part Number
    LP0AA3100A7**
  • Manufacturer
    Kyocera AVX
  • Description
    Multilayer Organic Low Pass Ceramic filters from DC to 3100 GHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Paasive Filter
  • Frequency
    DC to 3.1 GHz
  • Center Frequency
    1550 MHz
  • Cut Off Frequency
    3.65 GHz
  • Bandwidth
    3100 MHz
  • Power
    4 W
  • Insertion Loss
    0.7 to 1.2 dB
  • Rejection
    30 to 40 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    Ceramic Filter
  • Application
    Mobile Communications, Satellite Receivers, GPS, Vehicle Location Systems, Wireless LAN’s, Instrumentation
  • Dimension
    0.259 x 0.157 x 0.022 Inch (L x W x T)
