  5. LP0DA1810A7**

Multilayer Organic Low Pass Ceramic filters from DC to 1810 GHz

SKU: LP0DA1810A7**

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

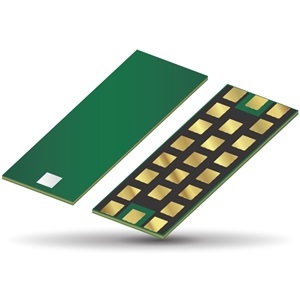

LP0DA1810A7** Image

The LP0DA1810A7** from Kyocera AVX is a Space Qualified RF Filter with Frequency DC to 1.81 GHz, Center Frequency 905 MHz, Cut Off Frequency 2.04 GHz, Bandwidth 1810 MHz, Power 4 W. Tags: Surface Mount. More details for LP0DA1810A7** can be seen below.

Product Specifications

Product Details

  • Part Number
    LP0DA1810A7**
  • Manufacturer
    Kyocera AVX
  • Description
    Multilayer Organic Low Pass Ceramic filters from DC to 1810 GHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Paasive Filter
  • Frequency
    DC to 1.81 GHz
  • Center Frequency
    905 MHz
  • Cut Off Frequency
    2.04 GHz
  • Bandwidth
    1810 MHz
  • Power
    4 W
  • Insertion Loss
    0.8 to 1.2 dB
  • Rejection
    30 to 40 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    Ceramic Filter
  • Application
    Mobile Communications, Satellite Receivers, GPS, Vehicle Location Systems, Wireless LAN’s, Instrumentation
  • Dimension
    0.401 x 0.156 x 0.04 Inch (L x W x T)
