Thin Film Low Pass LGA filters from DC to 3.4 GHz

SKU: LP1206A3400ANTR

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

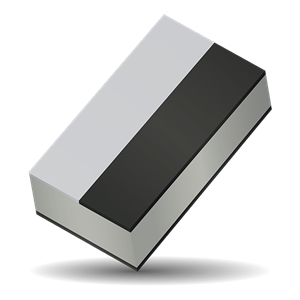

LP1206A3400ANTR Image

The LP1206A3400ANTR from Kyocera AVX is a Space Qualified RF Filter with Frequency DC to 3.4 GHz, Center Frequency 1700 MHz, Bandwidth 3400 MHz, Power 12 W, Insertion Loss -0.3 dB. Tags: Surface Mount. More details for LP1206A3400ANTR can be seen below.

Product Specifications

Product Details

  • Part Number
    LP1206A3400ANTR
  • Manufacturer
    Kyocera AVX
  • Description
    Thin Film Low Pass LGA filters from DC to 3.4 GHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Thin Film
  • Frequency
    DC to 3.4 GHz
  • Center Frequency
    1700 MHz
  • Bandwidth
    3400 MHz
  • Power
    12 W
  • Insertion Loss
    -0.3 dB
  • Return Loss
    -20 dB
  • Rejection
    -35 dB
  • VSWR
    1.22:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LGA Filter
  • Application
    Base Station, 5G & 6G / UWB, Mobile Communications, Satellite TV Receivers, GPS, Vehicle Location Systems, Wireless LAN’s
  • Dimension
    3.10 x 1.60 x 0.6 mm (L x W x H)
