Thin Film Low Pass LGA filters from DC to 0.512 GHz

SKU: LP2816A0512SNTR

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

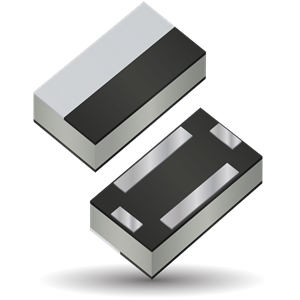

LP2816A0512SNTR Image

The LP2816A0512SNTR from Kyocera AVX is a Space Qualified RF Filter with Frequency DC to 0.512 GHz, Center Frequency 256 MHz, Bandwidth 512 MHz, Power 20 W, Insertion Loss -0.85 dB. Tags: Surface Mount. More details for LP2816A0512SNTR can be seen below.

Product Specifications

Product Details

  • Part Number
    LP2816A0512SNTR
  • Manufacturer
    Kyocera AVX
  • Description
    Thin Film Low Pass LGA filters from DC to 0.512 GHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Thin Film
  • Frequency
    DC to 0.512 GHz
  • Center Frequency
    256 MHz
  • Bandwidth
    512 MHz
  • Power
    20 W
  • Insertion Loss
    -0.85 dB
  • Return Loss
    -18 dB
  • Rejection
    -50 to -35 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LGA Filter
  • Application
    Mobile Communications, Satellite TV Receivers, GPS, Vehicle Location Systems, Wireless LAN’s
  • Dimension
    7 x 4 x 1.2 mm (L x W x T)
