6468-6588 MHz Space Qualified Bandpass Filter

SKU: C1970

Space Qualified RF Filter by Mercury Systems
6 more products
Download Datasheet Request Information

Note : Your request will be directed to Mercury Systems.

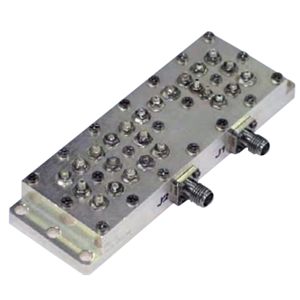

C1970 Image

The C1970 from Mercury Systems is a Space Qualified RF Filter with a frequency range of 6468-6588 MHz and an insertion loss of less than 3 dB. This RF filter has a passband ripple of 0.3 dB and a group delay variation of less than 3 ns. It has a VSWR o

Product Specifications

Product Details

  • Part Number
    C1970
  • Manufacturer
    Mercury Systems
  • Description
    6468-6588 MHz Space Qualified Bandpass Filter

General Parameters

  • Space Heritage
    Yes
  • Filter Type
    Band Pass Filter
  • Configuration
    Cavity Filter
  • Frequency
    6.468 to 6.588 GHz
  • Insertion Loss
    3 dB
  • Rejection
    10 to 61 dBc
  • VSWR
    1.50:1
  • Operating Temperature
    -20 to 85 Degree C
  • Package Type
    Module with Connectors
  • Space Standard
    MIL-C-39012
  • Application
    SATCOM, Test & Measurement, Data link
  • Dimension
    0.75 x 1.25 x 4 Inches

Technical Documents
