Space Qualified Bandpass Filter

SKU: Ku1960

Space Qualified RF Filter by Mercury Systems (6 more products)

Note : Your request will be directed to Mercury Systems.

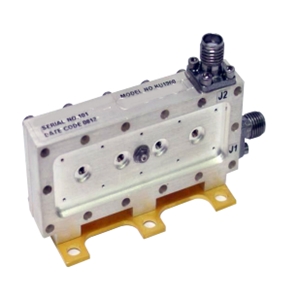

Ku1960 Image

The Ku1960 from Mercury Systems is a Space Qualified RF Filter with a passband frequency range of 17300-17700 MHz. This filter has a maximum insertion loss of 1.0 dB and a VSWR of 1.3:1. It has a rejection of 40 dB at 17800 MHz and an insertion loss flatness of 0.25 dB. The filter features a cavity design and a static notch. It has a mass of 0.2 lb and comes in a package measuring 0.5 x 1.0 x 2.3 inches. The filter is ideal for communication satellites and test equipment.

Product Specifications

Product Details

  • Part Number
    Ku1960
  • Manufacturer
    Mercury Systems
  • Description
    Space Qualified Bandpass Filter

General Parameters

  • Space Heritage
    Yes
  • Filter Type
    Band Pass Filter
  • Configuration
    Cavity Filter
  • Frequency
    17.3 to 17.7 GHz
  • Insertion Loss
    1 dB
  • Rejection
    40 dB
  • VSWR
    1.30:1
  • Package Type
    Module with Connectors
  • Application
    SATCOM, Test & Measurement, Ku Band
  • Dimension
    0.5 x 1.0 x 2.3 Inches
