Band Pass Filter from 1420 to 1470 MHz

SKU: BFCN-1445

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

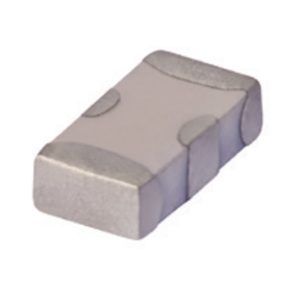

BFCN-1445 Image

The BFCN-1445 from Mini Circuits is a Space Qualified RF Filter with Frequency 1.42 to 1.47 GHz, Center Frequency 1445 MHz, Stop Band Frequency DC to 4900 MHz, Power 1.5 W, Insertion Loss 3 dB. Tags: Surface Mount. More details for BFCN-1445 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-1445
  • Manufacturer
    Mini Circuits
  • Description
    Band Pass Filter from 1420 to 1470 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    1.42 to 1.47 GHz
  • Center Frequency
    1445 MHz
  • Stop Band Frequency
    DC to 4900 MHz
  • Power
    1.5 W
  • Insertion Loss
    3 dB
  • Rejection
    20 to 25 dB
  • VSWR
    2.50:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm
