Band Pass Filter from 950 to 1970 MHz

SKU: BFCN-152W-75

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

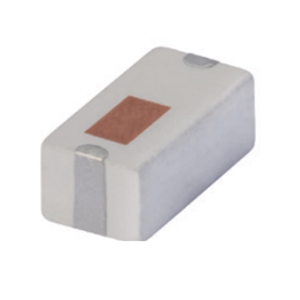

BFCN-152W-75 Image

The BFCN-152W-75 from Mini Circuits is a Space Qualified RF Filter with Frequency 950 MHz to 1.97 GHz, Center Frequency 1460 MHz, Stop Band Frequency DC to 3000 MHz, Power 1 W, Insertion Loss 1.9 to 2.5 dB. Tags: Surface Mount. More details for BFCN-152W-75 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-152W-75
  • Manufacturer
    Mini Circuits
  • Description
    Band Pass Filter from 950 to 1970 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    950 MHz to 1.97 GHz
  • Center Frequency
    1460 MHz
  • Stop Band Frequency
    DC to 3000 MHz
  • Power
    1 W
  • Insertion Loss
    1.9 to 2.5 dB
  • Rejection
    20 to 60 dB
  • VSWR
    1.60:1
  • Impedance
    75 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    CATV, MOCA, Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm
