Surface Mount RF Band Pass Filter from 1530 to 1620 MHz

SKU: BFCN-1575

Space Qualified RF Filter by Mini Circuits
195 more products
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

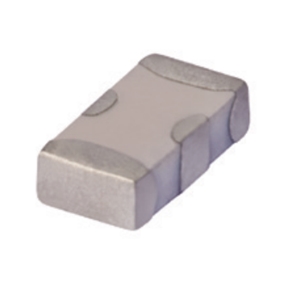

BFCN-1575 Image

The BFCN-1575 from Mini Circuits is a Space Qualified RF Filter with Frequency 1.53 to 1.62 GHz, Center Frequency 1575 MHz, Stop Band Frequency DC to 5200 MHz, Bandwidth 90 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-1575 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-1575
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 1530 to 1620 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    1.53 to 1.62 GHz
  • Center Frequency
    1575 MHz
  • Stop Band Frequency
    DC to 5200 MHz
  • Bandwidth
    90 MHz
  • Power
    1.5 W
  • Insertion Loss
    3 dB
  • Rejection
    20 to 25 dB
  • VSWR
    2.50:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm
