Band Pass Filter from 1570 to 1810 MHz

SKU: BFCN-1690

Space Qualified RF Filter by Mini Circuits
195 more products
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

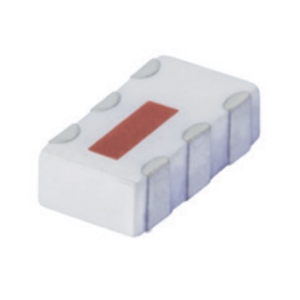

BFCN-1690 Image

The BFCN-1690 from Mini Circuits is a Space Qualified RF Filter with Frequency 1.57 to 1.81 GHz, Center Frequency 1690 MHz, Stop Band Frequency DC to 4400 MHz, Power 1 W, Insertion Loss 2.5 to 5 dB. Tags: Surface Mount. More details for BFCN-1690 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-1690
  • Manufacturer
    Mini Circuits
  • Description
    Band Pass Filter from 1570 to 1810 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    1.57 to 1.81 GHz
  • Center Frequency
    1690 MHz
  • Stop Band Frequency
    DC to 4400 MHz
  • Power
    1 W
  • Insertion Loss
    2.5 to 5 dB
  • Rejection
    5 to 30 dB
  • VSWR
    2.00:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    0.126 x 0.063 x 0.035 Inches
