Surface Mount RF Band Pass Filter from 1750 to 1930 MHz

SKU: BFCN-1840

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

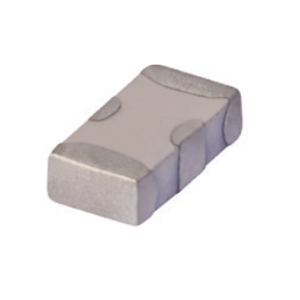

BFCN-1840 Image

The BFCN-1840 from Mini Circuits is a Space Qualified RF Filter with Frequency 1.75 to 1.93 GHz, Center Frequency 1840 MHz, Stop Band Frequency DC to 5700 MHz, Bandwidth 180 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-1840 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-1840
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 1750 to 1930 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    1.75 to 1.93 GHz
  • Center Frequency
    1840 MHz
  • Stop Band Frequency
    DC to 5700 MHz
  • Bandwidth
    180 MHz
  • Power
    1.5 W
  • Insertion Loss
    3 dB
  • Rejection
    20 to 25 dB
  • VSWR
    2.50:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm
