Surface Mount RF Band Pass Filter from 2500 to 2610 MHz

SKU: BFCN-2555

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

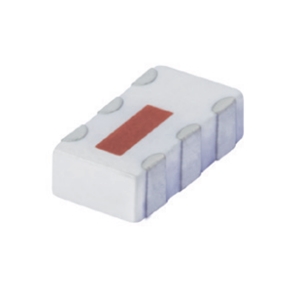

BFCN-2555 Image

The BFCN-2555 from Mini Circuits is a Space Qualified RF Filter with Frequency 2.5 to 2.61 GHz, Center Frequency 2555 MHz, Stop Band Frequency DC to 5500 MHz, Bandwidth 110 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-2555 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-2555
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 2500 to 2610 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Frequency
    2.5 to 2.61 GHz
  • Center Frequency
    2555 MHz
  • Stop Band Frequency
    DC to 5500 MHz
  • Bandwidth
    110 MHz
  • Power
    1.5 W
  • Insertion Loss
    7 dB
  • Return Loss
    6.49 to 12.74 dB
  • Rejection
    20 to 30 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm
