Surface Mount RF Band Pass Filter from 2750 to 2950 MHz

SKU: BFCN-2850

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

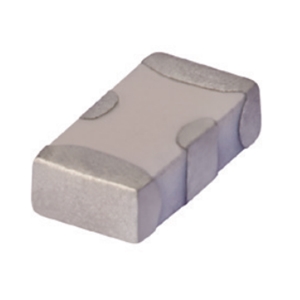

BFCN-2850 Image

The BFCN-2850 from Mini Circuits is a Space Qualified RF Filter with Frequency 2.75 to 2.95 GHz, Center Frequency 2850 MHz, Stop Band Frequency DC to 5900 MHz, Bandwidth 200 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-2850 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-2850
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 2750 to 2950 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Frequency
    2.75 to 2.95 GHz
  • Center Frequency
    2850 MHz
  • Stop Band Frequency
    DC to 5900 MHz
  • Bandwidth
    200 MHz
  • Power
    1.5 W
  • Insertion Loss
    4 dB
  • Return Loss
    10.2 to 17.7 dB
  • Rejection
    20 to 25 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    WiMax, Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm

Technical Documents
