Surface Mount RF Band Pass Filter from 2570 to 3440 MHz

SKU: BFCN-2975

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

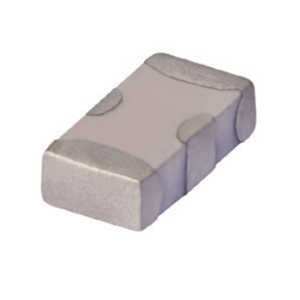

BFCN-2975 Image

The BFCN-2975 from Mini Circuits is a Space Qualified RF Filter with Frequency 2.57 to 3.44 GHz, Center Frequency 2975 MHz, Stop Band Frequency DC to 7500 MHz, Bandwidth 870 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-2975 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-2975
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 2570 to 3440 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Frequency
    2.57 to 3.44 GHz
  • Center Frequency
    2975 MHz
  • Stop Band Frequency
    DC to 7500 MHz
  • Bandwidth
    870 MHz
  • Power
    1.5 W
  • Insertion Loss
    2.2 to 3 dB
  • Return Loss
    6 to 7.4 dB
  • Rejection
    20 to 26 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm

Technical Documents
