Surface Mount RF Band Pass Filter from 2800 to 3400 MHz

SKU: BFCN-3085

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

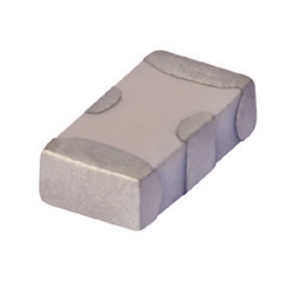

BFCN-3085 Image

The BFCN-3085 from Mini Circuits is a Space Qualified RF Filter with Frequency 2.8 to 3.4 GHz, Center Frequency 3085 MHz, Stop Band Frequency DC to 7800 MHz, Bandwidth 600 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-3085 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-3085
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 2800 to 3400 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Frequency
    2.8 to 3.4 GHz
  • Center Frequency
    3085 MHz
  • Stop Band Frequency
    DC to 7800 MHz
  • Bandwidth
    600 MHz
  • Power
    1.5 W
  • Insertion Loss
    1.65 to 2.5 dB
  • Return Loss
    6 to 8.5 dB
  • Rejection
    20 to 26 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Military, Avionics, Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm
