Surface Mount RF Band Pass Filter from 4200 to 4700 MHz

SKU: BFCN-4440

Space Qualified RF Filter by Mini Circuits
195 more products
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

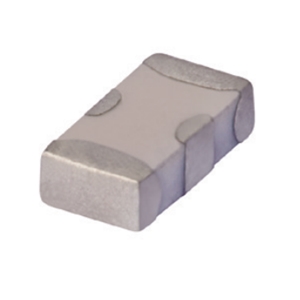

BFCN-4440 Image

The BFCN-4440 from Mini Circuits is a Space Qualified RF Filter with Frequency 4.2 to 4.7 GHz, Center Frequency 4440 MHz, Stop Band Frequency 2000 to 12000 MHz, Bandwidth 500 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-4440 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-4440
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 4200 to 4700 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Frequency
    4.2 to 4.7 GHz
  • Center Frequency
    4440 MHz
  • Stop Band Frequency
    2000 to 12000 MHz
  • Bandwidth
    500 MHz
  • Power
    1.5 W
  • Insertion Loss
    2 dB
  • Return Loss
    12.7 to 20.8 dB
  • Rejection
    20 to 25 dB
  • VSWR
    1.60:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm
