1.5 W Ceramic Band Pass Filter from 4.4 to 5.2 GHz

SKU: BFCN-4800

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

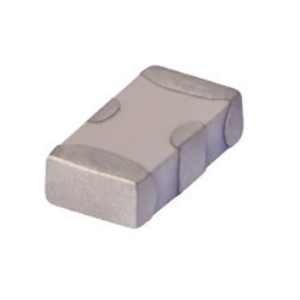

BFCN-4800 Image

The BFCN-4800 from Mini Circuits is a Space Qualified RF Filter with Frequency 4.4 to 5.2 GHz, Center Frequency 4800 MHz, Stop Band Frequency DC to 12000 MHz, Bandwidth 800 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-4800 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-4800
  • Manufacturer
    Mini Circuits
  • Description
    1.5 W Ceramic Band Pass Filter from 4.4 to 5.2 GHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    4.4 to 5.2 GHz
  • Center Frequency
    4800 MHz
  • Stop Band Frequency
    DC to 12000 MHz
  • Bandwidth
    800 MHz
  • Power
    1.5 W
  • Insertion Loss
    2 dB
  • Rejection
    15 to 30 dB
  • VSWR
    1.70:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    SATCOM, Military, Commercial, Mobile, Harmonic Rejection
  • Dimension
    0.126 x 0.063 x .037 inches

Technical Documents
