2 W Ceramic Band Pass Filter from 3.1 to 7.1 GHz

SKU: BFCN-5100

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

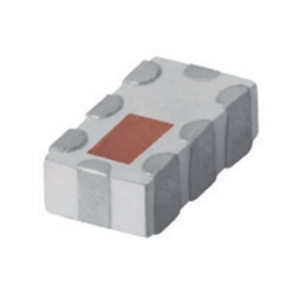

BFCN-5100 Image

The BFCN-5100 from Mini Circuits is a Space Qualified RF Filter with Frequency 3.1 to 7.1 GHz, Center Frequency 5100 MHz, Stop Band Frequency DC to 17000 MHz, Bandwidth 4000 MHz, Power 2 W. Tags: Surface Mount. More details for BFCN-5100 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-5100
  • Manufacturer
    Mini Circuits
  • Description
    2 W Ceramic Band Pass Filter from 3.1 to 7.1 GHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    3.1 to 7.1 GHz
  • Center Frequency
    5100 MHz
  • Stop Band Frequency
    DC to 17000 MHz
  • Bandwidth
    4000 MHz
  • Power
    2 W
  • Insertion Loss
    1.5 to 2.1 dB
  • Rejection
    20 to 30 dB
  • VSWR
    2.00:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Application
    EW, Harmonic Rejection, Transmitters / Receivers
  • Dimension
    0.126 x 0.063 x .037 inches
