Band Pass Filter from 5650 to 5850 MHz

SKU: BFCN-5750

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

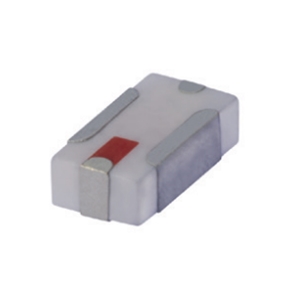

BFCN-5750 Image

The BFCN-5750 from Mini Circuits is a Space Qualified RF Filter with Frequency 5.65 to 5.85 GHz, Center Frequency 5750 MHz, Stop Band Frequency DC to 9500 MHz, Power 2 W, Insertion Loss 1.85 to 2.5 dB. Tags: Surface Mount. More details for BFCN-5750 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-5750
  • Manufacturer
    Mini Circuits
  • Description
    Band Pass Filter from 5650 to 5850 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    5.65 to 5.85 GHz
  • Center Frequency
    5750 MHz
  • Stop Band Frequency
    DC to 9500 MHz
  • Power
    2 W
  • Insertion Loss
    1.85 to 2.5 dB
  • Rejection
    25 to 50 dB
  • VSWR
    1.25:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Wireless Infrastructure, WLAN, WiFi, Harmonic Rejection
  • Dimension
    0.126 x 0.063 x 0.037 Inches

Technical Documents
