Surface Mount RF Band Pass Filter from 8350 to 8550 MHz

SKU: BFCN-8450

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

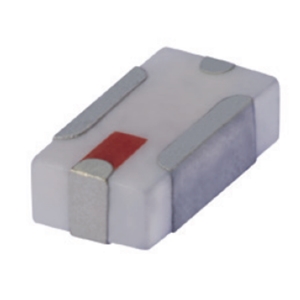

BFCN-8450 Image

The BFCN-8450 from Mini Circuits is a Space Qualified RF Filter with Frequency 8.35 to 8.55 GHz, Center Frequency 8450 MHz, Stop Band Frequency DC to 15050 MHz, Bandwidth 200 MHz, Power 2 W. Tags: Surface Mount. More details for BFCN-8450 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-8450
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 8350 to 8550 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    8.35 to 8.55 GHz
  • Center Frequency
    8450 MHz
  • Stop Band Frequency
    DC to 15050 MHz
  • Bandwidth
    200 MHz
  • Power
    2 W
  • Insertion Loss
    1.6 to 3.5 dB
  • Rejection
    18 to 30 dB
  • VSWR
    1.40:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    3.2 x 1.6 mm
