  5. HFCN-2700A

2.9-8.7 GHz LTCC High Pass Filter for Transmitters

SKU: HFCN-2700A

Space Qualified RF Filter by Mini Circuits
195 more products
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

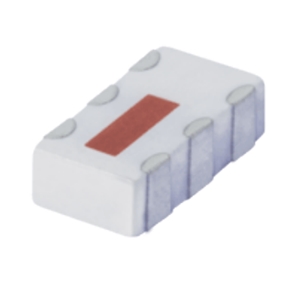

HFCN-2700A Image

The HFCN-2700A from Mini Circuits is a Space Qualified RF Filter with a frequency range of 2900-8700 MHz. This high pass filter has a stop band rejection loss of 20-30 dB and a pass band insertion loss of 1.5-2 dB. It has a stop band VSWR of 20:1 and a

Product Specifications

Product Details

  • Part Number
    HFCN-2700A
  • Manufacturer
    Mini Circuits
  • Description
    2.9-8.7 GHz LTCC High Pass Filter for Transmitters

General Parameters

  • Filter Type
    High Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    2.9 to 8.7 GHz
  • Cut Off Frequency
    2700 MHz
  • Stop Band Frequency
    2270 to 2150 MHz
  • Power
    7 W
  • Insertion Loss
    1.5 to 2 dB
  • Rejection
    20 to 30 dB
  • VSWR
    1.50:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Sub-Harmonic Rejection, Transmitters/receivers
  • Dimension
    3.20 x 1.60 mm
