LTCC High Pass Filter from 500 to 2500 MHz

SKU: HFCN-440

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

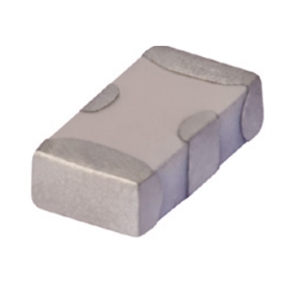

HFCN-440 Image

The HFCN-440 from Mini Circuits is a Space Qualified RF Filter with Frequency 500 MHz to 2.5 GHz, Cut Off Frequency 440 MHz, Stop Band Frequency 230 to 350 MHz, Power 7 W, Insertion Loss 1.3 to 2 dB. Tags: Surface Mount. More details for HFCN-440 can be seen below.

Product Specifications

Product Details

  • Part Number
    HFCN-440
  • Manufacturer
    Mini Circuits
  • Description
    LTCC High Pass Filter from 500 to 2500 MHz

General Parameters

  • Filter Type
    High Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    500 MHz to 2.5 GHz
  • Cut Off Frequency
    440 MHz
  • Stop Band Frequency
    230 to 350 MHz
  • Power
    7 W
  • Insertion Loss
    1.3 to 2 dB
  • Rejection
    20 to 40 dB
  • VSWR
    1.50:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Sub-Harmonic Rejection, Transmitters/receivers, Military
  • Dimension
    3.20 x 1.60 mm
