LTCC High Pass Filter from 7900 to 11000 MHz

SKU: HFCN-7150

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

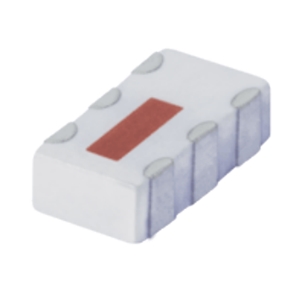

HFCN-7150 Image

The HFCN-7150 from Mini Circuits is a Space Qualified RF Filter with Frequency 7.9 to 11 GHz, Cut Off Frequency 7150 MHz, Stop Band Frequency 5100 to 6150 MHz, Power 6 W, Insertion Loss 1.5 to 2 dB. Tags: Surface Mount. More details for HFCN-7150 can be seen below.

Product Specifications

Product Details

  • Part Number
    HFCN-7150
  • Manufacturer
    Mini Circuits
  • Description
    LTCC High Pass Filter from 7900 to 11000 MHz

General Parameters

  • Filter Type
    High Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    7.9 to 11 GHz
  • Cut Off Frequency
    7150 MHz
  • Stop Band Frequency
    5100 to 6150 MHz
  • Power
    6 W
  • Insertion Loss
    1.5 to 2 dB
  • Rejection
    20 to 30 dB
  • VSWR
    1.50:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Sub-Harmonic Rejection, Transmitters/receivers
  • Dimension
    3.20 x 1.60 mm
