LTCC High Pass Filter from 140 to 1150 MHz

SKU: HFCV-145

Space Qualified RF Filter by Mini Circuits
195 more products
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

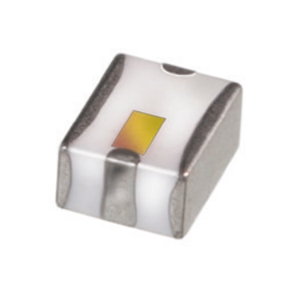

HFCV-145 Image

The HFCV-145 from Mini Circuits is a Space Qualified RF Filter with Frequency 140 MHz to 1.15 GHz, Cut Off Frequency 130 MHz, Stop Band Frequency DC to 115 MHz, Power 5 W, Insertion Loss 1 to 3 dB. Tags: Surface Mount. More details for HFCV-145 can be seen below.

Product Specifications

Product Details

  • Part Number
    HFCV-145
  • Manufacturer
    Mini Circuits
  • Description
    LTCC High Pass Filter from 140 to 1150 MHz

General Parameters

  • Filter Type
    High Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    140 MHz to 1.15 GHz
  • Cut Off Frequency
    130 MHz
  • Stop Band Frequency
    DC to 115 MHz
  • Power
    5 W
  • Insertion Loss
    1 to 3 dB
  • Return Loss
    8 to 19 dB
  • Rejection
    13 to 23 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 125 Degree C
  • Storage Temperature
    -55 to 125 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Sub-Harmonic Rejection, Transmitters/receivers, Lab use
  • Dimension
    3.20 x 2.5 mm
