LTCC Low Pass Filter from DC to 1700 MHz

SKU: LFCN-1700D

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

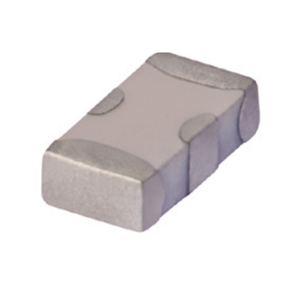

LFCN-1700D Image

The LFCN-1700D from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 1.7 GHz, Cut Off Frequency 2050 MHz, Stop Band Frequency 2375 to 7000 MHz, Power 10 W, Insertion Loss 1 dB. Tags: Surface Mount. More details for LFCN-1700D can be seen below.

Product Specifications

Product Details

  • Part Number
    LFCN-1700D
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 1700 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 1.7 GHz
  • Cut Off Frequency
    2050 MHz
  • Stop Band Frequency
    2375 to 7000 MHz
  • Power
    10 W
  • Insertion Loss
    1 dB
  • Rejection
    20 to 30 dB
  • VSWR
    1.20:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, VHF/UHF Transmitters / Receivers, Test & Measurement
  • Dimension
    3.2 x 1.60 mm
