Low Pass Filter from DC to 2400 MHz

SKU: LFCN-2400D-1

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

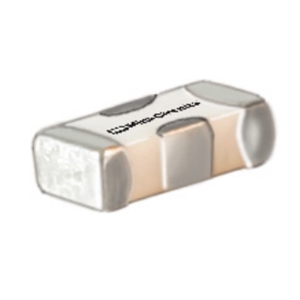

LFCN-2400D-1 Image

The LFCN-2400D-1 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 2.4 GHz, Cut Off Frequency 2800 MHz, Stop Band Frequency 3600 to 5000 MHz, Power 9 W, Insertion Loss 0.03 to 1.34 dB. Tags: Surface Mount. More details for LFCN-2400D-1 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFCN-2400D-1
  • Manufacturer
    Mini Circuits
  • Description
    Low Pass Filter from DC to 2400 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 2.4 GHz
  • Cut Off Frequency
    2800 MHz
  • Stop Band Frequency
    3600 to 5000 MHz
  • Power
    9 W
  • Insertion Loss
    0.03 to 1.34 dB
  • Rejection
    20 to 30 dB
  • VSWR
    1.01:1, 1.97:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, VHF/UHF Transmitters / Receivers, Test & Measurement
  • Dimension
    3.2 x 1.60 mm
