LTCC Low Pass Filter from DC to 7200 MHz

SKU: LFCN-722

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

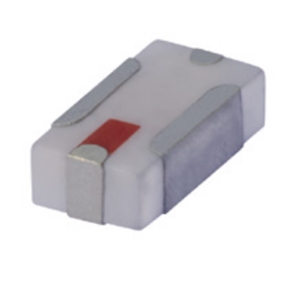

LFCN-722 Image

The LFCN-722 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 7.2 GHz, Cut Off Frequency 7940 MHz, Stop Band Frequency 8980 to 15000 MHz, Power 12 W, Insertion Loss 1.9 to 3.2 dB. Tags: Surface Mount. More details for LFCN-722 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFCN-722
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 7200 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 7.2 GHz
  • Cut Off Frequency
    7940 MHz
  • Stop Band Frequency
    8980 to 15000 MHz
  • Power
    12 W
  • Insertion Loss
    1.9 to 3.2 dB
  • Rejection
    20 to 35 dB
  • VSWR
    2.00:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, VHF/UHF Transmitters / Receivers, Test & Measurement
  • Dimension
    3.2 x 1.6 mm
