LTCC Low Pass Filter from DC to 1450 MHz

SKU: LFCV-1450

Space Qualified RF Filter by Mini Circuits
195 more products
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

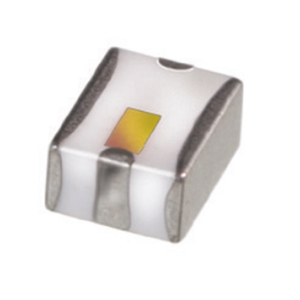

LFCV-1450 Image

The LFCV-1450 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 1.45 GHz, Cut Off Frequency 1500 MHz, Stop Band Frequency 1650 to 3000 MHz, Power 0.5 W, Insertion Loss 2.2 dB. Tags: Surface Mount. More details for LFCV-1450 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFCV-1450
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 1450 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 1.45 GHz
  • Cut Off Frequency
    1500 MHz
  • Stop Band Frequency
    1650 to 3000 MHz
  • Power
    0.5 W
  • Insertion Loss
    2.2 dB
  • Rejection
    20 to 40 dB
  • VSWR
    1.30:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, VHF/UHF Transmitters / Receivers, Test & Measurement, DECT, PACS, PHS, GSM, DCS, WLAN
  • Dimension
    0.126 x 0.098 x .059 Inches
