LTCC Low Pass Filter from DC to 45 MHz

SKU: LFCV-45

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

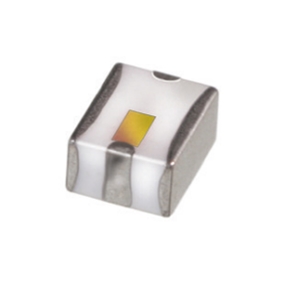

LFCV-45 Image

The LFCV-45 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 45 MHz, Cut Off Frequency 85 MHz, Stop Band Frequency 120 to 1000 MHz, Power 7 W, Insertion Loss 0.9 to 1.3 dB. Tags: Surface Mount. More details for LFCV-45 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFCV-45
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 45 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 45 MHz
  • Cut Off Frequency
    85 MHz
  • Stop Band Frequency
    120 to 1000 MHz
  • Power
    7 W
  • Insertion Loss
    0.9 to 1.3 dB
  • Return Loss
    20 dB
  • Rejection
    14 to 40 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 125 Degree C
  • Storage Temperature
    -55 to 125 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, VHF/UHF Transmitters/Receivers, Anti-aliasing for A/D converter
  • Dimension
    3.2 x 2.5 mm
