LTCC Low Pass Filter from DC to 11400 MHz

SKU: LFCW-1142

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

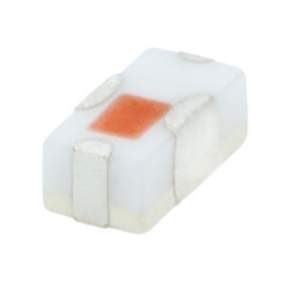

LFCW-1142 Image

The LFCW-1142 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 11.4 GHz, Cut Off Frequency 11700 MHz, Stop Band Frequency 12700 to 16800 MHz, Power 6.3 W, Insertion Loss 2.6 dB. Tags: Surface Mount. More details for LFCW-1142 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFCW-1142
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 11400 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 11.4 GHz
  • Cut Off Frequency
    11700 MHz
  • Stop Band Frequency
    12700 to 16800 MHz
  • Power
    6.3 W
  • Insertion Loss
    2.6 dB
  • Rejection
    20 to 28.5 dB
  • VSWR
    1.85:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, VHF/UHF Transmitters / Receivers, Test & Measurement
  • Dimension
    1.6 x 0.8 mm
