  5. LFCW-272

LTCC Low Pass Filter from DC to 2690 MHz

SKU: LFCW-272

Space Qualified RF Filter by Mini Circuits
195 more products
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

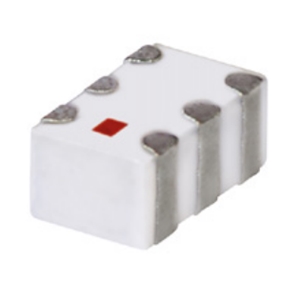

LFCW-272 Image

The LFCW-272 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 2.69 GHz, Cut Off Frequency 3200 MHz, Stop Band Frequency 4400 to 10000 MHz, Power 3 W, Insertion Loss 0.5 to 1.2 dB. Tags: Surface Mount. More details for LFCW-272 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFCW-272
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 2690 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 2.69 GHz
  • Cut Off Frequency
    3200 MHz
  • Stop Band Frequency
    4400 to 10000 MHz
  • Power
    3 W
  • Insertion Loss
    0.5 to 1.2 dB
  • Rejection
    20 to 30 dB
  • VSWR
    1.60:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, VHF/UHF Transmitters / Receivers, Test & Measurement, Wireless communication
  • Dimension
    1.6 x 0.8 mm
