LTCC Low Pass Filter from DC to 1700 MHz

SKU: LFTC-1700

Space Qualified RF Filter by Mini Circuits (195 more products)

Note : Your request will be directed to Mini Circuits.

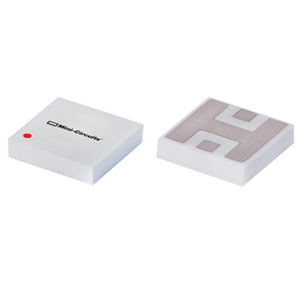

LFTC-1700 Image

The LFTC-1700 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 1.7 GHz, Cut Off Frequency 1980 MHz, Stop Band Frequency 2700 to 7200 MHz, Power 14 W, Insertion Loss 0.04 to 0.82 dB. Tags: Surface Mount. More details for LFTC-1700 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFTC-1700
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 1700 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 1.7 GHz
  • Cut Off Frequency
    1980 MHz
  • Stop Band Frequency
    2700 to 7200 MHz
  • Power
    14 W
  • Insertion Loss
    0.04 to 0.82 dB
  • Rejection
    20 to 40 dB
  • VSWR
    1.20:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 125 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Internal Rejection, Receivers & Transmitters
  • Dimension
    0.15 x 0.15 x 0.034 Inches
