LTCC Low Pass Filter from DC to 3300 MHz

SKU: LFTC-3300

Space Qualified RF Filter by Mini Circuits
195 more products
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

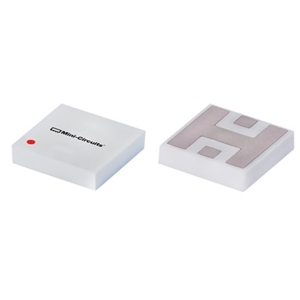

LFTC-3300 Image

The LFTC-3300 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 3.3 GHz, Cut Off Frequency 4100 MHz, Stop Band Frequency 5600 to 10000 MHz, Power 10 W, Insertion Loss 0.08 to 0.76 dB. Tags: Surface Mount. More details for LFTC-3300 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFTC-3300
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 3300 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 3.3 GHz
  • Cut Off Frequency
    4100 MHz
  • Stop Band Frequency
    5600 to 10000 MHz
  • Power
    10 W
  • Insertion Loss
    0.08 to 0.76 dB
  • Rejection
    20 dB
  • VSWR
    1.05:1, 1.20:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 125 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Internal Rejection, Receivers & Transmitters
  • Dimension
    0.15 x 0.15 x 0.034 Inches
