HiRel NPN Silicon RF Transistor from 6.5 to 8 GHz

SKU: BFY193C (ES)

Space Qualified RF Transistor by Infineon Technologies
25 more products
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

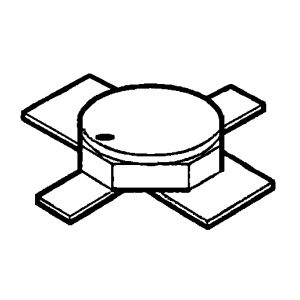

BFY193C (ES) Image

The BFY193C (ES) from Infineon Technologies is a Space Qualified RF Transistor with Frequency 6.5 to 8 GHz, Gain 8 to 9 dB(Transducer Gain), Power Gain (Gp) 12.5 to 13.5 dB, Noise Figure 2.3 to 2.9 dB, Supply Voltage 1 V(Base-Emitter forward voltage). More details for BFY193C (ES) can be seen below.

Product Specifications

Product Details

  • Part Number
    BFY193C (ES)
  • Manufacturer
    Infineon Technologies
  • Description
    HiRel NPN Silicon RF Transistor from 6.5 to 8 GHz

General Parameters

  • Transistor Type
    BJT
  • Technology
    Si, NPN
  • CW/Pulse
    CW
  • Frequency
    6.5 to 8 GHz
  • Gain
    8 to 9 dB(Transducer Gain)
  • Power Gain (Gp)
    12.5 to 13.5 dB
  • Noise Figure
    2.3 to 2.9 dB
  • Collector Base Voltage
    20 V
  • Collector Emmiter Voltage
    12 to 20 V
  • Supply Voltage
    1 V(Base-Emitter forward voltage)
  • Collector Current (Ic)
    80 mA
  • Base Current (Ib)
    10 mA
  • Power Dissipation (Pdiss)
    580 mW
  • Space Qualified
    Yes
  • Space Standard
    ESCC-5611/006, ESCC-5010
  • Input Capacitance
    0.56 to 2.4 pF
  • Output Capacitance
    0.56 to 2.4 pF
  • Grade
    Space Qualified
  • Operating Temperature
    -65 to 200 Degree C
  • Storage Temperature
    -65 to 200 Degree C
  • Note
    For flight use
