Ku-band SATCOM Antenna for Global Broadband

SKU: ThinAir Ku3030

SATCOM Antenna by ThinKom
5 more products
Download Datasheet Request Information

Note : Your request will be directed to ThinKom.

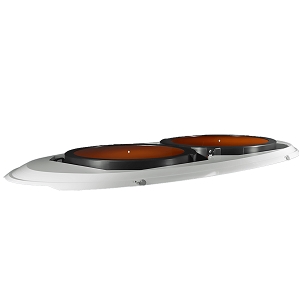

ThinAir Ku3030 Image

The ThinAir Ku3030 from ThinKom is a SATCOM Antenna with Frequency 13.75 to 14.5 GHz(TX) / 10.7 to 12.75 GHz(RX), Tx Frequency 13.75 to 14.5 GHz, Rx Frequency 10.7 to 12.75 GHz. Tags: Phased Array Antenna. More details for ThinAir Ku3030 can be seen below.

Product Specifications

Product Details

  • Part Number
    ThinAir Ku3030
  • Manufacturer
    ThinKom
  • Description
    Ku-band SATCOM Antenna for Global Broadband

General Parameters

  • Deployment
    Airborne
  • Type
    Phased Array Antenna
  • Antenna Sub-Type
    SATCOM-on-the-Move Antenna
  • Polarization
    Linear
  • Band
    Ku Band
  • Frequency
    13.75 to 14.5 GHz(TX) / 10.7 to 12.75 GHz(RX)
  • Tx Frequency
    13.75 to 14.5 GHz
  • Rx Frequency
    10.7 to 12.75 GHz
  • Beamwidth
    1.8 degrees (Tx) and 2.1 degrees (Rx)
  • Cross Polarization Isolation
    30 dB
  • Horizontal Beamwidth
    360 Degree
  • Vertical Beamwidth
    90 Degree
  • Mounting
    Roof Mount
  • Weight
    36.741 Kg (Tx Antenna) and 37.64 Kg (Rx Antenna)
  • Dimension
    74 x 35 x 4 Inches (L x W x H)
  • Height
    35 Inches
  • Length
    74 Inches
  • Operating Temperature
    -55 to 74 Degree C
  • Application
    Commercial, Military, Satellite, Airborne
  • Note
    Constellations : LEO, GEO
