Patch Antenna S Band designed for CubeSat Missions

SKU: PULSAR-SANT

Satellite Antenna by AAC Clyde Space
5 more products
Download Datasheet Request Information

Note : Your request will be directed to AAC Clyde Space.

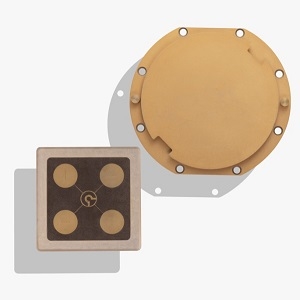

PULSAR-SANT Image

The PULSAR-SANT from AAC Clyde Space is a Satellite Antenna with Frequency Range 2400 to 2450 MHz, Antenna Gain 7 dBi, Beamwidth 60 Degree, Reflective Isolation -15 dB, Mass 50 g. More details for PULSAR-SANT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PULSAR-SANT
  • Manufacturer
    AAC Clyde Space
  • Description
    Patch Antenna S Band designed for CubeSat Missions

General Parameters

  • Space Heritage
    Yes
  • Satellite Type
    CubeSat
  • Antenna Type
    Patch Antenna
  • Frequency Band
    S Band
  • Frequency Range
    2400 to 2450 MHz
  • Antenna Gain
    7 dBi
  • Polarization
    RHCP, LHCP
  • Beamwidth
    60 Degree
  • Reflective Isolation
    -15 dB
  • Mass
    50 g
  • Lifetime
    2 Years
  • Connector
    SMA, SMA - Female
  • Operating Temperature
    -40 to 85 Degree C
  • Application
    Advanced CubeSat missions
