1.8m Auto-pointing Flyaway Antenna

SKU: ACF-180INSATC

Satellite Antenna by Antesky Science Technology
20 more products
Request Information

Note : Your request will be directed to Antesky Science Technology.

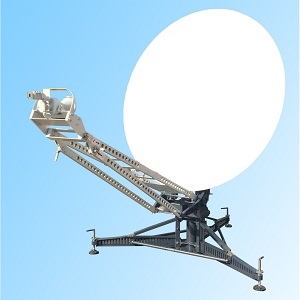

ACF-180INSATC Image

The ACF-180INSATC from Antesky Science Technology is a Satellite Antenna with Frequency Range 6.725 to 7.025 GHz (Tx), 4.5 to 4.8 GHz (Rx), Tx Frequency 6.725 to 7.025 GHz, Rx Frequency 4.5 to 4.8 GHz, Antenna Gain Tx : 40 dBi, Rx : 36.6 dBi, Power Consumption 100 W. More details for ACF-180INSATC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ACF-180INSATC
  • Manufacturer
    Antesky Science Technology
  • Description
    1.8m Auto-pointing Flyaway Antenna

General Parameters

  • Space Heritage
    Yes
  • Antenna Type
    Reflector Antenna
  • Frequency Band
    C Band
  • Frequency Range
    6.725 to 7.025 GHz (Tx), 4.5 to 4.8 GHz (Rx)
  • Tx Frequency
    6.725 to 7.025 GHz
  • Rx Frequency
    4.5 to 4.8 GHz
  • Antenna Gain
    Tx : 40 dBi, Rx : 36.6 dBi
  • Polarization
    Linear
  • Power Consumption
    100 W
  • Directionality
    Directional
  • Crosspolar Isolation
    30 dB
  • Horizontal Beamwidth
    220 Degrees
  • VSWR
    1.50:1
  • Mass
    150 Kg
  • Voltage
    220 VAC
  • Waveguide
    WR-137, WR-229
  • Operating Temperature
    -40 to 60 Degree C
  • Reflector Material
    Carbon Fiber
  • Storage Temperature
    -50 to 70 Degree C
  • Sidelobe
    -14 dB
  • Vertical Beamwidth
    10 to 90 Degrees
  • Application
    Earthquake Disaster Relief, TV Broadcasting, Maritime Affairs, Exploration, Meteorology and other emergency communication fields
  • Dimension
    Back structure box : 1410 x 490 x 660 mm, Panel box A : 1010 x 570 x 690 mm, Support legs : 1550 x 520 x 350 mm, Turntable pedestal : 610 x 480 x 680 mm, Feed : 1000 x 800 x 400 mm
