1.0m ka Band auto-pointing flyaway Antenna

SKU: ATDF-100KA

Satellite Antenna by Antesky Science Technology
20 more products
Request Information

Note : Your request will be directed to Antesky Science Technology.

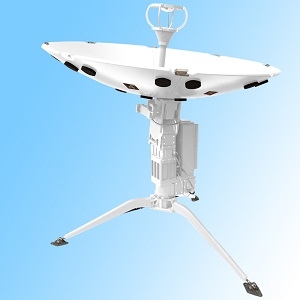

ATDF-100KA Image

The ATDF-100KA from Antesky Science Technology is a Satellite Antenna with Frequency Range 27.5 to 31 GHz (Tx), 17.7 to 21.2 GHz (Rx), Tx Frequency 27.5 to 31 GHz, Rx Frequency 17.7 to 21.2 GHz, Antenna Gain Tx : 47 dBi, Rx : 43.6 dBi, Reflective Isolation 85 dB. More details for ATDF-100KA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ATDF-100KA
  • Manufacturer
    Antesky Science Technology
  • Description
    1.0m ka Band auto-pointing flyaway Antenna

General Parameters

  • Space Heritage
    Yes
  • Antenna Type
    Reflector Antenna, Flat Panel Antenna
  • Frequency Band
    Ka Band
  • Frequency Range
    27.5 to 31 GHz (Tx), 17.7 to 21.2 GHz (Rx)
  • Tx Frequency
    27.5 to 31 GHz
  • Rx Frequency
    17.7 to 21.2 GHz
  • Antenna Gain
    Tx : 47 dBi, Rx : 43.6 dBi
  • Polarization
    Circular
  • Directionality
    Directional
  • Reflective Isolation
    85 dB
  • Horizontal Beamwidth
    200 Degrees
  • Axial Ratio
    1.5 dB
  • Mass
    25 Kg
  • Voltage
    220 VAC
  • Operating Temperature
    -40 to 60 Degree C
  • Reflector Material
    Carbon Fiber
  • Storage Temperature
    -50 to 70 Degree C
  • Sidelobe
    -14 dB
  • Vertical Beamwidth
    10 to 90 Degrees
  • Application
    Earthquake Disaster Relief, TV Broadcasting, Maritime Affairs, Exploration, Meteorology and other emergency communication fields
  • Dimension
    Reflector : 830 x 530 x 400 mm, Controller and receiver : 640 x 480 x 270 mm
