Patch Antenna for Nano Satellites

SKU: ANT1090-P

Satellite Antenna by GomSpace
8 more products
Download Datasheet Request Information

Note : Your request will be directed to GomSpace.

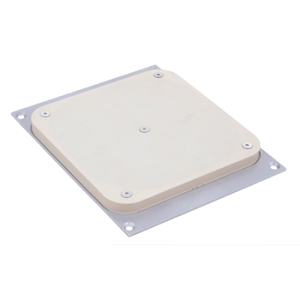

ANT1090-P Image

The ANT1090-P from GomSpace is a Satellite Antenna with Frequency Range 1085 to 1095 MHz, Antenna Gain 4.5 dBi, Noise Figure 1.5 dB, Power Consumption 0.0031 W, Beamwidth 60 to 80 Degree (3dB). More details for ANT1090-P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ANT1090-P
  • Manufacturer
    GomSpace
  • Description
    Patch Antenna for Nano Satellites

General Parameters

  • Space Heritage
    Yes
  • Satellite Type
    NanoSat, CubeSat
  • Antenna Type
    Patch Antenna
  • Frequency Range
    1085 to 1095 MHz
  • Antenna Gain
    4.5 dBi
  • Noise Figure
    1.5 dB
  • Polarization
    RHCP, LHCP
  • Power Consumption
    0.0031 W
  • Beamwidth
    60 to 80 Degree (3dB)
  • Axial Ratio
    3 to 6 dB
  • Insertion Loss
    -0.35 dB
  • Mass
    135 g
  • Voltage
    4 to 5.25 V
  • Current
    30 to 40 mA
  • Component
    Low Noise Amplifier, Filter
  • Connector
    SSMCX
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
  • Application
    Designed especially for ADS-B signal reception
  • Dimension
    100 x 100 x 12 mm
