Space Qualified Omnidirectional GPS Antenna

SKU: AS-48917

Satellite Antenna by L3Harris Technologies
2 more products
Download Datasheet Request Information

Note : Your request will be directed to L3Harris Technologies.

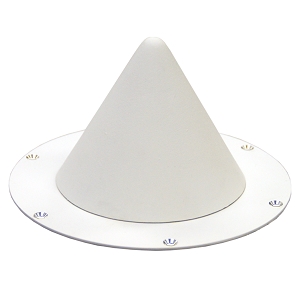

AS-48917 Image

The AS-48917 from L3Harris Technologies is a Satellite Antenna with Frequency Range 1217 to 1585 MHz, Antenna Gain -5 to 0 dBi, Beamwidth 110 to 145 Degree (3dB), Front to Back Ratio 20 dB, Axial Ratio 3 to 5 dB. More details for AS-48917 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AS-48917
  • Manufacturer
    L3Harris Technologies
  • Description
    Space Qualified Omnidirectional GPS Antenna

General Parameters

  • Space Heritage
    Yes
  • Antenna Type
    Conical Antenna
  • Frequency Band
    GPS L1 Band, GPS L2 Band
  • Frequency Range
    1217 to 1585 MHz
  • Antenna Gain
    -5 to 0 dBi
  • Polarization
    RHCP, LHCP
  • Directionality
    Omni-Directional
  • Beamwidth
    110 to 145 Degree (3dB)
  • Front to Back Ratio
    20 dB
  • Axial Ratio
    3 to 5 dB
  • VSWR
    1.50:1
  • Mass
    454 g
  • Connector
    SMA, SMA - Female
  • Operating Temperature
    ±100 Degree C
  • Application
    GPS
