1575.42 MHz GPS Receiver/Antenna for Orbital Position Determination

SKU: LYRA-H02 (NANT-PTCL1)

Satellite Antenna by NewSpace Systems
3 more products
Download Datasheet Request Information

Note : Your request will be directed to NewSpace Systems.

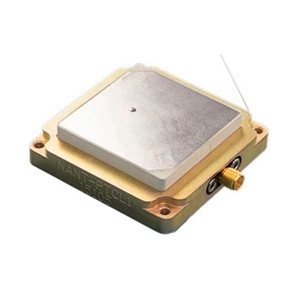

LYRA-H02 (NANT-PTCL1) Image

The LYRA-H02 (NANT-PTCL1) from NewSpace Systems is a Satellite Antenna with Frequency Range 1.575 GHz, Tx Frequency 1.575 GHz, Antenna Gain 16 dBi, Beamwidth 100 Degrees, Axial Ratio 10 dB. More details for LYRA-H02 (NANT-PTCL1) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LYRA-H02 (NANT-PTCL1)
  • Manufacturer
    NewSpace Systems
  • Description
    1575.42 MHz GPS Receiver/Antenna for Orbital Position Determination

General Parameters

  • Antenna Type
    Patch Antenna
  • Frequency Band
    GPS L1 Band
  • Frequency Range
    1.575 GHz
  • Tx Frequency
    1.575 GHz
  • Antenna Gain
    16 dBi
  • Polarization
    RHCP
  • Beamwidth
    100 Degrees
  • Axial Ratio
    10 dB
  • Impedance
    50 Ohms
  • Connector
    SMA, SMA - Female
  • Return Loss
    -5 dB
  • Application
    Aerospace, Earth Exploration, Intersatellite Data Links
  • Dimension
    54 x 54 x 14.1 mm

Technical Documents
