GNSS L1/E1 Test Hat

SKU: PW1515-304

Satellite Antenna by PlaneWave
32 more products
Download Datasheet Request Information

Note : Your request will be directed to PlaneWave.

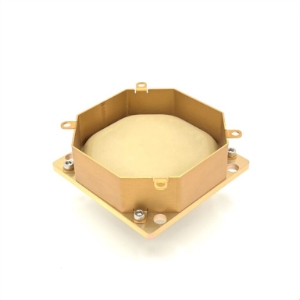

PW1515-304 Image

The PW1515-304 from PlaneWave is a Satellite Antenna with Frequency Range 1.559 to 1.591 GHz, Mass 245 g, Operating Temperature -70 to 100 Degree C, Storage Temperature -70 to 100 Degree C. More details for PW1515-304 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PW1515-304
  • Manufacturer
    PlaneWave
  • Description
    GNSS L1/E1 Test Hat

General Parameters

  • Frequency Band
    Galileo E1 Band, GPS L1 Band
  • Frequency Range
    1.559 to 1.591 GHz
  • Polarization
    RHCP
  • VSWR
    2.50:1
  • Mass
    245 g
  • Connector
    SMA, SMA - Female
  • Operating Temperature
    -70 to 100 Degree C
  • Storage Temperature
    -70 to 100 Degree C
  • Application
    GNSS, GPS
  • Dimension
    3.8 x 3.8 x 1.56 In
  • Note
    Coupling : 4 to 6.5 dB
