L-Band RHCP Wideband Omni Test Hat

SKU: PW1516-300

Satellite Antenna by PlaneWave
32 more products
Download Datasheet Request Information

Note : Your request will be directed to PlaneWave.

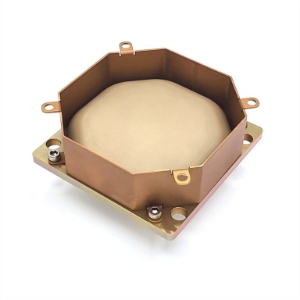

PW1516-300 Image

The PW1516-300 from PlaneWave is a Satellite Antenna with Frequency Range Tx : 1.62 to 1.675 GHz, Rx : 1.513 to 1.565 GHz, Tx Frequency 1.62 to 1.675 GHz, Rx Frequency 1.513 to 1.565 GHz, Mass 230 g, Operating Temperature -70 to 100 Degree C. More details for PW1516-300 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PW1516-300
  • Manufacturer
    PlaneWave
  • Description
    L-Band RHCP Wideband Omni Test Hat

General Parameters

  • Frequency Band
    L Band
  • Frequency Range
    Tx : 1.62 to 1.675 GHz, Rx : 1.513 to 1.565 GHz
  • Tx Frequency
    1.62 to 1.675 GHz
  • Rx Frequency
    1.513 to 1.565 GHz
  • Polarization
    RHCP
  • VSWR
    2.00:1
  • Mass
    230 g
  • Connector
    SMA, SMA - Female
  • Operating Temperature
    -70 to 100 Degree C
  • Storage Temperature
    -70 to 100 Degree C
  • Application
    Data
  • Dimension
    3.8 x 3.8 x 1.33 In
  • Note
    Coupling : 2.5 to 5.5 dB
