S-Band RHCP Dual-Port (TX+RX) Omni Antenna

SKU: PW2022-102

Satellite Antenna by PlaneWave
32 more products
Download Datasheet Request Information

Note : Your request will be directed to PlaneWave.

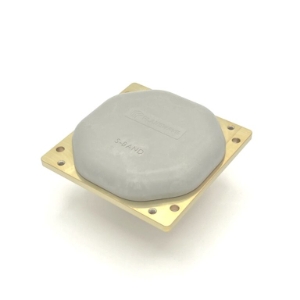

PW2022-102 Image

The PW2022-102 from PlaneWave is a Satellite Antenna with Frequency Range Tx : 2.2 to 2.29 GHz, Rx : 2.025 to 2.11 GHz, Tx Frequency 2.2 to 2.29 GHz, Rx Frequency 2.025 to 2.11 GHz, Antenna Gain 1.5 to 5.2 dBi, Power Consumption 20 W. More details for PW2022-102 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PW2022-102
  • Manufacturer
    PlaneWave
  • Description
    S-Band RHCP Dual-Port (TX+RX) Omni Antenna

General Parameters

  • Antenna Type
    Flat Panel Antenna
  • Frequency Band
    S Band
  • Frequency Range
    Tx : 2.2 to 2.29 GHz, Rx : 2.025 to 2.11 GHz
  • Tx Frequency
    2.2 to 2.29 GHz
  • Rx Frequency
    2.025 to 2.11 GHz
  • Antenna Gain
    1.5 to 5.2 dBi
  • Polarization
    RHCP
  • Power Consumption
    20 W
  • Directionality
    Omni-Directional
  • Reflective Isolation
    25 dB (Port-to-port)
  • Axial Ratio
    2 to 4.5 dB
  • VSWR
    1.80:1
  • Mass
    200 g
  • Connector
    SMA, SMA - Female
  • Operating Temperature
    -70 to 100 Degree C
  • Storage Temperature
    -70 to 100 Degree C
  • Space Standard
    GSFC-STD-7000
  • Application
    TT&C
  • Dimension
    3.8 x 3.8 x 0.7 In

Technical Documents
