X-Band RHCP TX Switched-Beam Hemispherical Antenna Module

SKU: PW8282-103

Satellite Antenna by PlaneWave
32 more products
Download Datasheet Request Information

Note : Your request will be directed to PlaneWave.

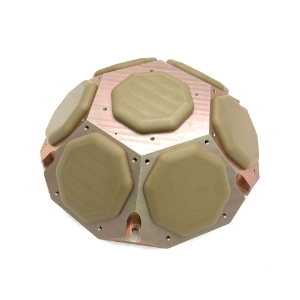

PW8282-103 Image

The PW8282-103 from PlaneWave is a Satellite Antenna with Frequency Range Tx : 8.025 to 8.5 GHz, Tx Frequency 8.025 to 8.5 GHz, Antenna Gain 8 to 10 dBi, Power Consumption 20 W, Axial Ratio 2 to 3 dB. More details for PW8282-103 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PW8282-103
  • Manufacturer
    PlaneWave
  • Description
    X-Band RHCP TX Switched-Beam Hemispherical Antenna Module

General Parameters

  • Antenna Type
    Hemispherical Antenna
  • Frequency Band
    X Band
  • Frequency Range
    Tx : 8.025 to 8.5 GHz
  • Tx Frequency
    8.025 to 8.5 GHz
  • Antenna Gain
    8 to 10 dBi
  • Polarization
    RHCP
  • Power Consumption
    20 W
  • Directionality
    Directional (Switched Beam)
  • Axial Ratio
    2 to 3 dB
  • VSWR
    2.00:1
  • Mass
    950 g
  • Connector
    SMA, SMA - Female
  • Operating Temperature
    -70 to 100 Degree C
  • Storage Temperature
    -70 to 100 Degree C
  • Space Standard
    GSFC-STD-7000
  • Application
    TT&C
  • Dimension
    9.9 x 9.9 x 2.93 In
