X-Band RHCP TX 2x2 Test Hat

SKU: PW8282-302

Satellite Antenna by PlaneWave
32 more products
Download Datasheet Request Information

Note : Your request will be directed to PlaneWave.

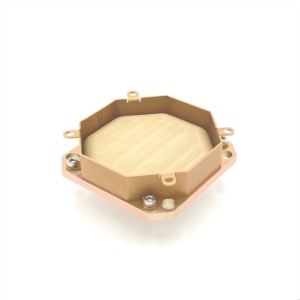

PW8282-302 Image

The PW8282-302 from PlaneWave is a Satellite Antenna with Frequency Range Tx : 8.025 to 8.5 GHz, Tx Frequency 8.025 to 8.5 GHz, Mass 160 g, Operating Temperature -70 to 100 Degree C, Storage Temperature -70 to 100 Degree C. More details for PW8282-302 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PW8282-302
  • Manufacturer
    PlaneWave
  • Description
    X-Band RHCP TX 2x2 Test Hat

General Parameters

  • Frequency Band
    X Band
  • Frequency Range
    Tx : 8.025 to 8.5 GHz
  • Tx Frequency
    8.025 to 8.5 GHz
  • Polarization
    RHCP
  • VSWR
    2.50:1
  • Mass
    160 g
  • Connector
    SMA, SMA - Female
  • Operating Temperature
    -70 to 100 Degree C
  • Storage Temperature
    -70 to 100 Degree C
  • Application
    TT&C
  • Dimension
    3.5 x 3.5 x 1.39 In
  • Note
    Coupling : 4 to 7 dB
