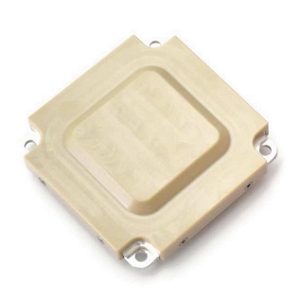

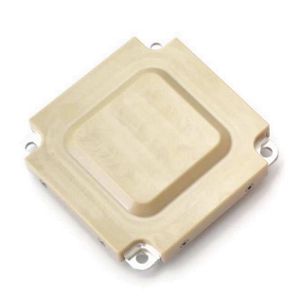

UHF 4-4-3 Dual Mode Patch Antenna Array

SKU: UHF 4-4-3 Dual Mode Patch Antenna Array

Satellite Antenna by Printech Circuit Laboratories
20 more products
Request Information

Note : Your request will be directed to Printech Circuit Laboratories.

The UHF 4-4-3 Dual Mode Patch Antenna Array from Printech Circuit Laboratories is a Satellite Antenna with Frequency Range 865 to 925 MHz, Antenna Gain 3.4 to 7.2 dBi, Beamwidth 70 to 85 Degree, Axial Ratio 3 dB, Mass 1050 g. More details for UHF 4-4-3 Dual Mode Patch Antenna Array can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UHF 4-4-3 Dual Mode Patch Antenna Array
  • Manufacturer
    Printech Circuit Laboratories
  • Description
    UHF 4-4-3 Dual Mode Patch Antenna Array

General Parameters

  • Space Heritage
    Yes
  • Antenna Type
    Patch Antenna
  • Frequency Band
    UHF Band
  • Frequency Range
    865 to 925 MHz
  • Antenna Gain
    3.4 to 7.2 dBi
  • Polarization
    RHCP
  • Beamwidth
    70 to 85 Degree
  • Axial Ratio
    3 dB
  • VSWR
    1.50:1
  • Mass
    1050 g
  • Connector
    SMA, SMA - Female
  • Dimension
    90 x 90 x 29 mm (Wx L x H) Excl. Connector, 150 x 38 mm (Dia x H)
